Fume hood
A fume hood is equipped with the following elements:
- A hood body entirely made of high-grade acid-proof stainless steel
- Complete water and sewage system
- Medical tap for hot/cold water and sprinklers of the work area
- Removable perforated baffle in the work area
- Built-in control of mechanical ventilation with the possibility of connecting to the existing ventilation system
- Custom lighting of the hood body
- Complete electrical system with own overvoltage protection
- Two independent 230 V power sockets for power tools

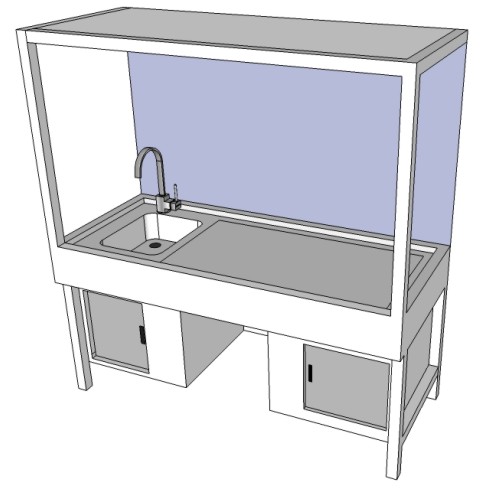

View / Drawing of the product
- Depth: TBD
- Width: TBD
- Height: TBD
Connections required for the operation of the hood: power cord 3 x 2.5 mm2, soil pipe with the diameter of 50 mm, cold and hot water terminals ended with a 1/2” valve, a ventilation duct with the minimum capacity of 900 m3/h.
